All strut fittings are also available in MM sizes and stainless steel
Cross Plate Angle
GSC-1142
Weight/100 Pcs: 105 Lbs.
Tee Plate 90° Angle
GSC-1143
Weight/100 Pcs: 71 Lbs.
Slotted Corner Connector
GSC-1144
Weight/100 Pcs: 97 Lbs.

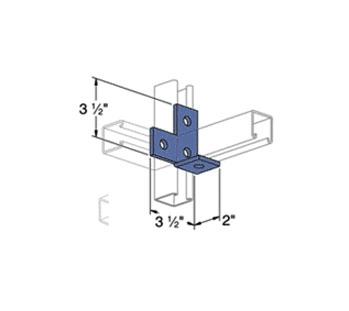

Three-Hole Corner Joint Connector
GSC-1145
Weight/100 Pcs: 70 Lbs.
Four-Hole Corner Connector
GSC-1146
Weight/100 Pcs: 75 Lbs.
Four-Hole Corner Connector
GSC-1147
Weight/100 Pcs: 105 Lbs.
Five-Hole Corner Connector
GSC-1148
Weight/100 Pcs: 154 Lbs.
Angle Plate Connector
GSC-1149
Weight/100 Pcs: 55 Lbs.
Angle Tee Plate
GSC-1150
Weight/100 Pcs: 80 Lbs.

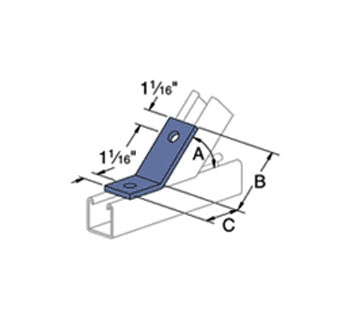

Two-Hole Open Angle Connector
GSC-1151
Weight/100 Pcs: 58 Lbs.
| "A" Degree | "B" In. | "C" In. |
| 82½° | 3 9/16" | 1 11/16" |
| 75° | 3 9/16" | |
| 67½° | 3½" | 1¾" |
| 60° | 3⅜" | 1⅞" |
| 52½° | 3¼" | 2 1/16" |
| 45° | 3" | 2 5/16" |
| 37½° | 2 11/16" | 2⅝" |
| 30° | 3¼" | 2 1/16" |
| 22½° | 3 5/16" | |
| 15° | 3 5/16" | |
| 7½° | 3 5/16" |

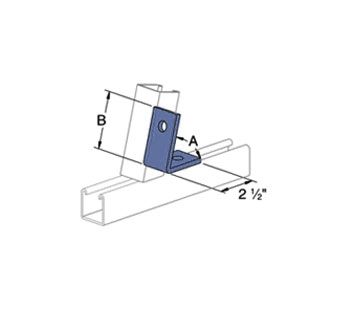

Corner Angle
GSC-1152
Weight/100 Pcs: 58 Lbs.
| "B" In. | "A" Angle |
| 3" | 37½° |
| 3⅛" | 45° |
| 3 1/16" | 52½° |
| 3⅛" | 60° |
| 3⅛" | 67½° |
| 3 3/16" | 75° |
| 3 3/16" | 82½° |
