Clevis Pipe Hanger, Standard Duty, Zinc
GSC-1185

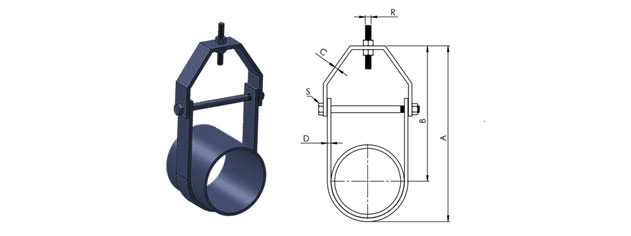

| Pipe Size (NOM) | A | B | C | D | S | RS |
| Clevis Length | Pipe Center To Clevis Top | Clevis Size | Saddle Size | Bolt Size (W/Nut) | Threaded Rod Size | |
| Ref. | Nominal | |||||
| 1/2 | 2.12 | 1.63 | 0.120x1.00 | 0.090x1.00 | 1/4-20 | 3/8-16 |
| 3/4 | 2.43 | 1.75 | 1/4-20 | 3/8-16 | ||
| 1 | 2.81 | 2.06 | 1/4-20 | 3/8-16 | ||
| 1-1/4 | 3.43 | 2.36 | 1/4-20 | 3/8-16 | ||
| 1-1/2 | 4 | 2.94 | 1/4-20 | 3/8-16 | ||
| 2 | 4.5 | 3.25 | 1/4-20 | 3/8-16 | ||
| 2-1/2 | 5.56 | 3.74 | 0.200x1.25 | 0.120x1.25 | 3/8-16 | 1/2-13 |
| 3 | 6.75 | 4.12 | 3/8-16 | 1/2-13 | ||
| 4 | 7.81 | 5.37 | 0.240x1.25 | 0.200x1.25 | 3/8-16 | 5/8-11 |
| 5 | 9.03 | 6.81 | 1/2-13 | 5/8-11 | ||
| 6 | 10.43 | 8.25 | 0.200x1.60 | 1/2-13 | 3/4-10 | |
| 8 | 12.75 | 9.50 | 5/8-11 | 3/4-10 | ||
| 10 | 15.25 | 10.78 | 0.400x1.75 | 0.240x1.60 | 5/8-11 | 7/8-9 |
| 12 | 17.62 | 12.00 | 5/8-11 | 7/8-9 | ||
| 14 | 122.00 | 14.78 | 0.472x1.97 | 0.236x1.96 | 7/8-9 | 1-8 |
| 16 | 24.13 | 15.90 | 0.472x2.75 | 0.236x2.56 | 7/8-9 | 1-8 |
| 18 | 26.70 | 17.45 | 7/8-9 | 1-8 | ||
| 20 | 28.26 | 17.90 | 0.630x3.00 | 0.393x2.95 | 7/8-9 | 1-1/4-8 |
